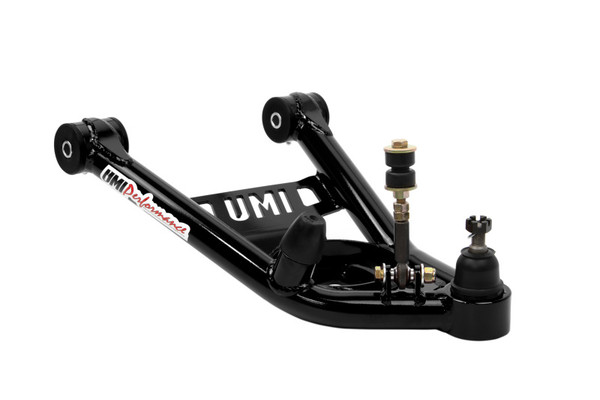

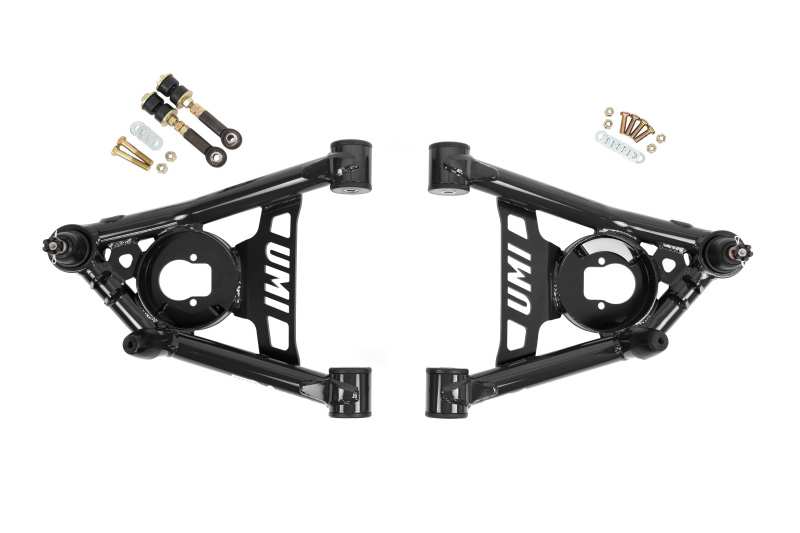

Tired of looking at hammered, crusty lower a-arms with cracked ball joint bosses? UMI has the solution with brand new modern tubular lower a-arms. UMI lower A-Arms are fabricated from DOM tubing with CNC machined tube ends for a precision fit. They are jig built to maintain accuracy and bolt on correctly every time. All critical areas are TIG welded for superior strength and a clean look. UMI's lower A-Arms also feature improved ball joint angle for lowered vehicles and the design provides additional tire clearance. Our P/N 4031 lower a-arms include greaseable polyurethane bushings, premium ball joints, and polyurethane bump stops. UMI's extensive testing on the street, drag strip and skid pad ensures a quality product able to with stand all types of abuse. UMI lower a-arms are designed to work with factory springs, lowering springs and coil over kits without changing the a-arms. For exceptional handling and performance we recommend combining with UMI upper a-arms,P/N 4033-1. UMI Performance lower A-Arms are shipped fully assembled and ready for installation. Designed and manufactured with pride in Philipsburg, PA - USA.
Hardware kit, Part # 4001 -Lower a-arm hardware kit includes 1/2-13 Grade 8 bolts, washers and nylock nuts. Torque to 60 ft-lb.
Features:
| Adjustable | No |
|---|---|
| Color | Black, Red |
| Finish | Powder Coat |
| Direct Bolt-On | Yes |
| Ball Joint Height | Standard |
| Bushing Type | Polyurethane |
| Fitment | 1964-1972 GM A-Body |
FITMENT:
| Buick | GS | 1970 |
| Buick | GS | 1971 |
| Buick | GS | 1972 |
| Buick | GS 350 | 1968 |
| Buick | GS 350 | 1969 |
| Buick | GS 400 | 1968 |
| Buick | GS 400 | 1969 |
| Buick | GS 455 | 1970 |
| Buick | GS 455 | 1971 |
| Buick | GS 455 | 1972 |
| Buick | Gran Sport | 1965 |
| Buick | Gran Sport | 1966 |
| Buick | Gran Sport | 1967 |
| Buick | Skylark | 1964 |
| Buick | Skylark | 1965 |
| Buick | Skylark | 1966 |
| Buick | Skylark | 1967 |
| Buick | Skylark | 1968 |
| Buick | Skylark | 1969 |
| Buick | Skylark | 1970 |
| Buick | Skylark | 1971 |
| Buick | Skylark | 1972 |
| Buick | Special | 1964 |
| Buick | Special | 1965 |
| Buick | Special | 1966 |
| Buick | Special | 1967 |
| Buick | Special | 1968 |
| Buick | Special | 1969 |
| Buick | Sportwagon | 1964 |
| Buick | Sportwagon | 1965 |
| Buick | Sportwagon | 1966 |
| Buick | Sportwagon | 1967 |
| Buick | Sportwagon | 1968 |
| Buick | Sportwagon | 1969 |
| Buick | Sportwagon | 1970 |
| Buick | Sportwagon | 1971 |
| Buick | Sportwagon | 1972 |
| Chevrolet | Chevelle | 1964 |
| Chevrolet | Chevelle | 1965 |
| Chevrolet | Chevelle | 1966 |
| Chevrolet | Chevelle | 1967 |
| Chevrolet | Chevelle | 1968 |
| Chevrolet | Chevelle | 1969 |
| Chevrolet | Chevelle | 1970 |
| Chevrolet | Chevelle | 1971 |
| Chevrolet | Chevelle | 1972 |
| Chevrolet | El Camino | 1964 |
| Chevrolet | El Camino | 1965 |
| Chevrolet | El Camino | 1966 |
| Chevrolet | El Camino | 1967 |
| Chevrolet | El Camino | 1968 |
| Chevrolet | El Camino | 1969 |
| Chevrolet | El Camino | 1970 |
| Chevrolet | El Camino | 1971 |
| Chevrolet | El Camino | 1972 |
| Chevrolet | Malibu | 1964 |
| Chevrolet | Malibu | 1965 |
| Chevrolet | Malibu | 1966 |
| Chevrolet | Malibu | 1967 |
| Chevrolet | Monte Carlo | 1970 |
| Chevrolet | Monte Carlo | 1971 |
| Chevrolet | Monte Carlo | 1972 |
| GMC | Sprint | 1971 |
| GMC | Sprint | 1972 |
| Pontiac | GTO | 1964 |
| Pontiac | GTO | 1965 |
| Pontiac | GTO | 1966 |
| Pontiac | GTO | 1967 |
| Pontiac | GTO | 1968 |
| Pontiac | GTO | 1969 |
| Pontiac | GTO | 1970 |
| Pontiac | GTO | 1971 |
| Pontiac | GTO | 1972 |
| Pontiac | Grand Prix | 1969 |
| Pontiac | Grand Prix | 1970 |
| Pontiac | Grand Prix | 1971 |
| Pontiac | Grand Prix | 1972 |
| Pontiac | Lemans | 1964 |
| Pontiac | Lemans | 1965 |
| Pontiac | Lemans | 1966 |
| Pontiac | Lemans | 1967 |
| Pontiac | Lemans | 1968 |
| Pontiac | Lemans | 1969 |
| Pontiac | Lemans | 1970 |
| Pontiac | Lemans | 1971 |
| Pontiac | Lemans | 1972 |
| Pontiac | Tempest | 1964 |
| Pontiac | Tempest | 1965 |
| Pontiac | Tempest | 1966 |
| Pontiac | Tempest | 1967 |
| Pontiac | Tempest | 1968 |
| Pontiac | Tempest | 1969 |
| Pontiac | Tempest | 1970 |
