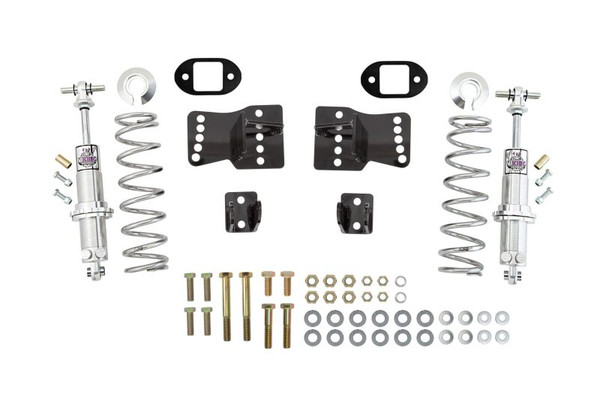

Rear Coilover Bolt-In Brackets Kit for Quick Performance
Product Details:
Product Features and Description:
UMI's bolt-in rear coilover bracket kit is a complete mounting solution for your Quick Performance axle in your 1978-1988 GM G-Body. This race-proven lower bracket bolts in using the adjustable trailing arm mounting holes. This bracket features a multi-position design to allow further fine tuning of ride height and shock location (+ or -3/4"). In addition to shock location adjustability, the UMI 3054 features five positions of trailing arm location adjustment to match the Quick Performance adjustable lower control arm brackets. This adjustment is popular on lowered cars, for drag racing traction, or whenever a geometry change is desired. The kit also features upper reinforcement tabs to distribute the load from the T-bar as well as complete upper and lower hardware. There is no cutting required and your car can be returned to stock at any time.
Installation & Fitment Note: 3054 Coilover brackets are designed to fit Quick Performance 9" rear end housings ONLY and may not fit aftermarket rear ends. UMI recommends installing the 3054 bracket kit, setting the ride height as desired, then purchasing the correct length shocks. Rear shocks may not clear all exhaust tail pipes.
Coilover brackets are engineered specifically to pair with Quick Performance adjustable lower control arm brackets. The 3054 will also fit on the Quick Performance single hole non-adjustable bracket but will not have the ability to adjust the lower control arms. See picture provided above.
Key Features:
1/2" x 1-1/4" mount fits most standard racing shocks.
Upper T-bar reinforcement tab and hardware included.
100% Bolt in design features shock height adjustability.
Brackets manufactured entirely from 3/16" mild steel.
Laser cut for consistency and a precise fit.
Powder coated black for a long lasting finish.
Optional shock tower reinforcement brace available. (P/N 3055)
Optional Shock Tower Brace P/N 3055- P/N 3055 is designed to tie the left and right rear shock towers together for additional chassis reinforcement. UMI's P/N 3055 has been designed to clear most popular exhaust systems however fitment with all exhaust systems is not guaranteed.
