Product Description:

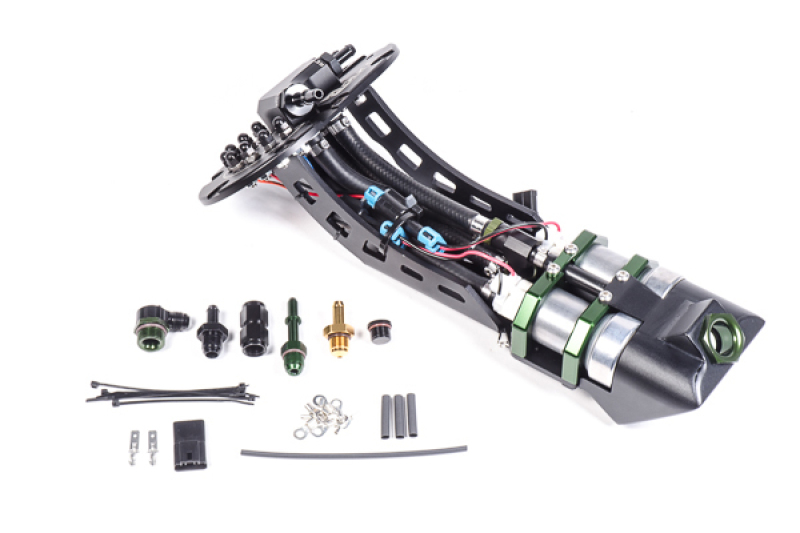

The Radium fuel pump hanger allows the use of 1 or 2 aftermarket high-flow fuel pumps. The machined assembly mounts in the factory fuel tank using the Original Manufacturer gasket and hardware. The fuel level sender and temperature sensors are retained.
The pumps merge into a single port outlet with 8AN ORB threads. The crossover and return uses 6AN ORB threaded ports. To simplify plumbing, the kit includes Original Manufacturer hose adapter fittings for all model years listed. There is also a return line SAE quick disconnect fitting included for newer models. Lastly, -6AN male fittings are included for those that use aftermarket feed and return hoses.
The custom designed stainless electrical studs easily handle the high current demand that compact bulkhead connectors lack. These serviceable connections are properly sealed and impervious to all standard and exotic fuels. The low profile design keeps all wiring tucked nicely underneath the Original Manufacturer cover plate. Nonconductive acorn nuts are provided to prevent any accidental short circuits.
Unlike the 2004-2007 WRX STi Original Manufacturer variation, the Radium Engineering collector box has been optimized to work in ALL gas tanks. There is a 1-way fill valve incorporated on the front side of the tank that flows 355LPH. It serves as a trap door keeping the pump(s) supplied with fuel during aggressive driving. Furthermore, all returning fuel from the pressure regulator return and the crossover hose enter the collector box keeping it full. The Original Manufacturer fuel level and fuel temperature sensors secure to the mounting bracket.Single pump applications can reuse the Original Manufacturer fuel pump controller, but it is recommended to upgrade the wiring as high flow fuel pumps draw additional current requiring larger gauge wire.
