ICON 22-23 Tundra / 2023+ Sequoia/Tacoma Tubular Rear Upper Link Kit - 54102T

(No reviews yet) Write a Review
$653.95
SKU:
ICO54102T
Condition:
New
Current Stock:
6
MPN:
54102T
5 customers are viewing this product
ICON 22-23 Tundra / 2023+ Sequoia/Tacoma Tubular Rear Upper Link Kit - 54102T

ICON 22-23 Tundra / 2023+ Sequoia/Tacoma Tubular Rear Upper Link Kit - 54102T

$653.95

Fitment and Product Information:

Tubular Rear Upper Link Kit For 2024-2025 Toyota Tundra/Sequoia/Tacoma/Land Cruiser 250 Series/Lexus GX550



Product Details:

  • Brand: Icon Vehicle Dynamics
  • Part Number: 54102T
  • UPC: 00840103428833

Product Features and Description:

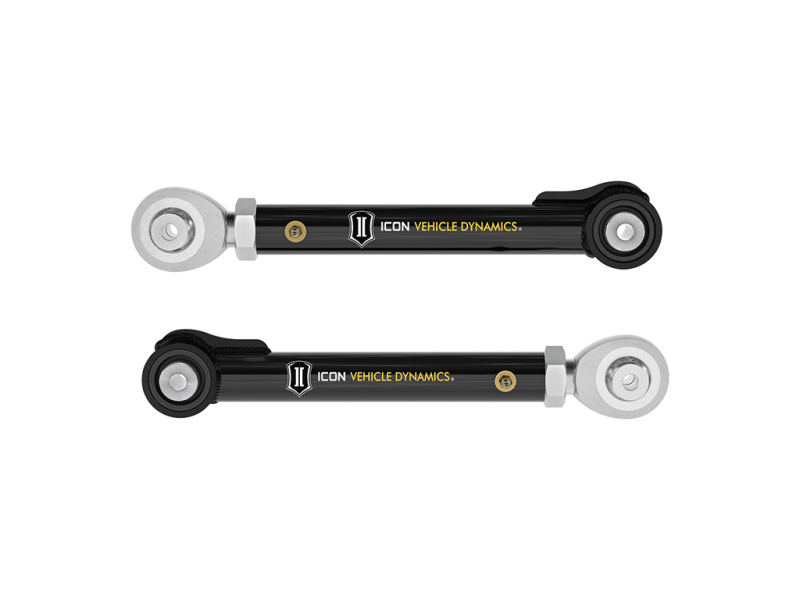

The ICON Tubular Rear Upper Link System helps free up rear axle movement on the Toyota Tundra, Toyota Sequoia, Toyota Tacoma, Toyota Land Cruiser 250 Series, and the Lexus GX550 to allow for increased suspension travel and articulation. Formed using 1 3/4" x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These upper links are designed with massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle's suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON's Limited Lifetime Warranty.

  • Adjustable for various lift heights & driveline angles
  • Help free rear suspension bind compared to Original Manufacturer links
  • CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
  • Multi durometer bushings for noise free operation and maximum angularity
  • No grease required for life of bushings
  • Quality JM16T PTFE-lined FK Rod Ends
  • Fabricated components covered under ICON's Limited Lifetime Warranty

Specifications:

  • Adjustable: Yes
  • Adjustable Control Arm: Yes
  • Attachments Included: Sold Separately
  • Ball Joint Included: Yes
  • Ball Joint Mounting Type: Thread in
  • Ball Joint Stud Type: Threaded
  • Bushing Color: Silver
  • Bushing Color: Black
  • Bushing Material: Rod End Bearing
  • Bushing Material: Polyurethane
  • Bushings Included: Yes
  • Color: Black
  • Construction: Tubular
  • Control Arm Color: Black
  • Control Arm Construction: Tubular
  • Control Arm Material: DOM Steel
  • End 1 Type: Bushing
  • End 2 Type: Rod End Bearing
  • Finish: Powdercoated
  • Grade Type: Performance
  • Grease Fitting Included: Sold Separately
  • Material: DOM Steel
  • Mounting Bracket Included: Sold Separately
  • Mounting Hardware Included: Yes
  • Pre-Assembled: Yes
  • Pre-Greased: Ungreased
  • Quantity: Pair
  • Reinforced: Yes
  • Set: Yes
  • Suspension Grade Type: Performance
  • Suspension Type: Air
  • Suspension Type: Coil Spring



Fitment and Important Notes About this Product:

  • 2024-2025 Lexus GX550
  • 2024-2025 Toyota Land Cruiser
  • 2024-2025 Toyota Sequoia
  • 2024-2025 Toyota Tacoma
  • 2024-2025 Toyota Tundra

  • Tundra/Sequoia equipped with Automatic Leveling Headlights or Load-Leveling Rear Height Control Air Suspension part # 55153 is also required
  • Compatible with ICON Tundra 6" Lift Performance Suspension System but may not be compatible with 6" lift kits from other manufacturers
  • Will not fit Tacoma submodels equipped with rear leaf springs
  • Land Cruiser 250 Series and GX550 also require Sensor Bracket part number 55161

  • The Wundercarparts 90 Day Warranty:
    Wundercarparts offers a 90 day warranty against manufacturer defects on all items we sell! Additionally, most new items come with a separate Manufacturer warranty. Please message us through eBay for further information on the Manufacturer's warranty.

    Prop 65 WarningWARNING: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

    This Part Fits:

    YearMakeModelSubmodel
    2024ToyotaLand Cruiser1958
    2024ToyotaLand CruiserBase
    2024ToyotaLand CruiserFirst Edition
    2023-2024ToyotaSequoiaCapstone
    2023-2024ToyotaSequoiaLimited
    2023-2024ToyotaSequoiaPlatinum
    2023-2024ToyotaSequoiaSR5
    2023-2024ToyotaSequoiaTRD Pro
    2024ToyotaTacomaLimited
    2024ToyotaTacomaSR
    2024ToyotaTacomaSR5
    2024ToyotaTacomaTRD Off-Road
    2024ToyotaTacomaTRD Sport
    2022-2024ToyotaTundra1794 Edition
    2022-2024ToyotaTundraCapstone
    2022-2024ToyotaTundraLimited
    2022-2024ToyotaTundraPlatinum
    2022-2024ToyotaTundraSR
    2022-2024ToyotaTundraSR5
    2022-2024ToyotaTundraTRD Pro
