COMP Cams .510in Lift Beehive Valve Spring Kit For GM Vortec Hydraulic Flat Tappets - 26906VCS-KIT

(No reviews yet) Write a Review
$227.32
SKU:
CCA26906VCS-KIT
UPC:
00036584416661
Condition:
New
Current Stock:
7
MPN:
26906VCS-KIT
5 customers are viewing this product
COMP Cams .510in Lift Beehive Valve Spring Kit For GM Vortec Hydraulic Flat Tappets - 26906VCS-KIT

COMP Cams .510in Lift Beehive Valve Spring Kit For GM Vortec Hydraulic Flat Tappets - 26906VCS-KIT

$227.32
Fitment and Product Information:

0.510" Lift Beehive Valve Spring Kit For GM Vortec Hydraulic Flat Tappets


Product Details:
  • Brand: Comp Cams
  • Part Number: 26906VCS-KIT

    Product Features and Description:

      This COMP Cams Valve Spring Kit is designed to maximize the potential of GM L31 Vortec cylinder heads when using a flat tappet camshaft. This kit allows up to .510" lift and provides spring rates that can handle significantly more aggressive lobe profiles. This kit has been developed to make your valve train upgrade as easy as possible by combining quality components in a package that does not require any machining! These components will drop right onto stock GM L31 Vortec cylinder heads.

    Product Specs:

    • Valve Spring Style: Beehive
    • Number of Springs Per Valve: 1
    • Installed Height (in): 1.75 in.
    • Load at Installed Height (lbs): 111
    • Open Height (in): 1.25 in.
    • Load at Open Height (lbs): 304
    • Recommended Max Lift (in): 0.51 in.
    • Outside Diameter of Outer Spring (in): 1.087/1.292 in.
    • Inside Diameter of Outer Spring (in): .645/.850 in.
    • Spring Rate (lbs/in): 386
    • Damper Spring Included: Sold Separately
    • Maximum Coil Bind Height (in): 1.18 in.
    • Valve Spring Finish: Raw
    • Retainer Material: Chromoly
    • Lock Style: 10 Degree
    • Valve Stem Diameter (in): 11/32 in.
    • Valve Stem Seal Type: Positive Stop
    • Valve Stem Seal Material: Made With Viton
    • Machine Work Required: Machine Work Not Required
    • Quantity: 16



    Fitment and Important Notes About this Product:

    • GM L31 engines
      1996-1999 Chevrolet/GMC Full Size Trucks, 5.7L
      1996-1999 Chevrolet Suburban/GMC Suburban, 5.7L
      1996-2000 Chevrolet Tahoe/GM Yukon, 5.7L
      1999-2000 Cadillac Escalade, 5.7L
      1996-2002 Chevrolet Express/GMC Savana, 5.7L

      Complete .510" max lift, drop-in valve spring kit for GM Vortec Cylinder Heads for use with  hydraulic flat tappet camshafts.

          111 LBS SEAT LOAD @ 1.750
          308 LBS OPEN LOAD @ 1.240
          386 LBS/IN RATE
          1.180 MAX COIL BIND
          .510" max lift

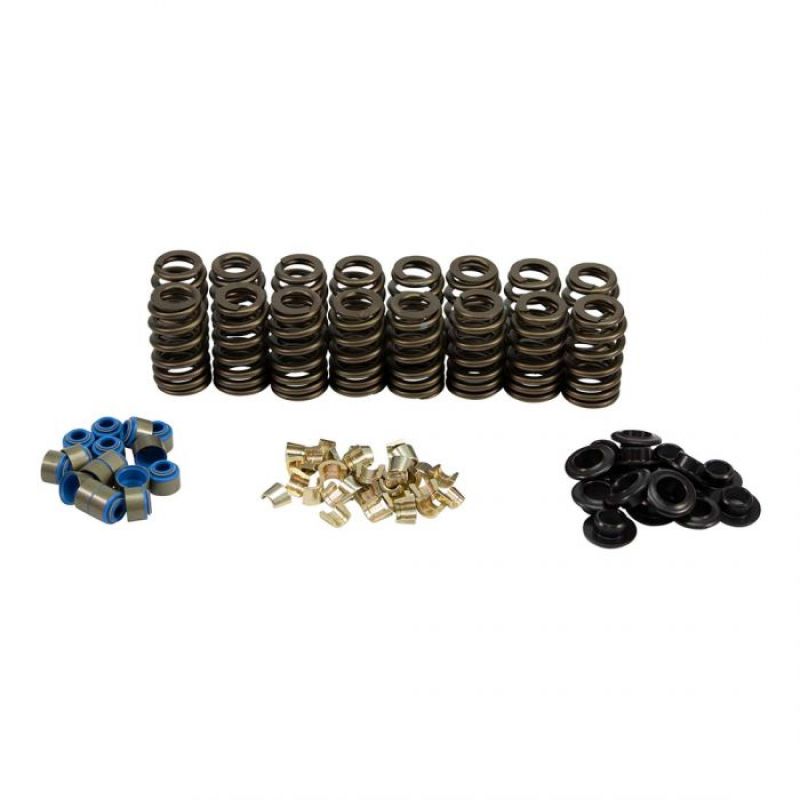

      Kit includes Beehive Valve Springs, chromemoly steel retainers, valve seals and valve locks.
